ENC-1

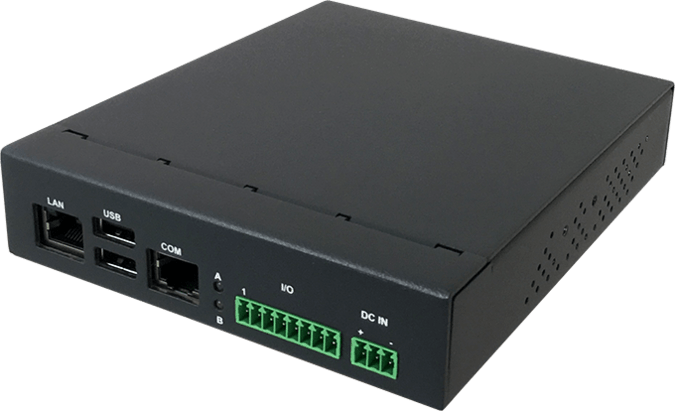

Custom designed for use with the Integrator Board, with rugged sleek looks and packing a lot of features into a compact 150x130x30mm form-factor.

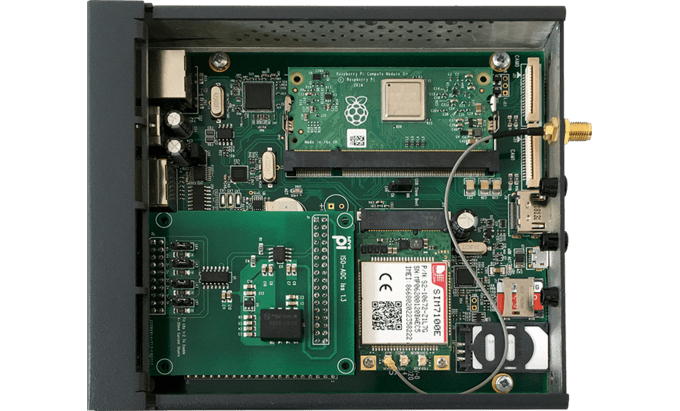

Secured with just two countersunk screws on the rear allowing both easy access to internals for fitting items such as SIMs or SD cards, and allowing security anti-tamper stickers to be applied for QA.

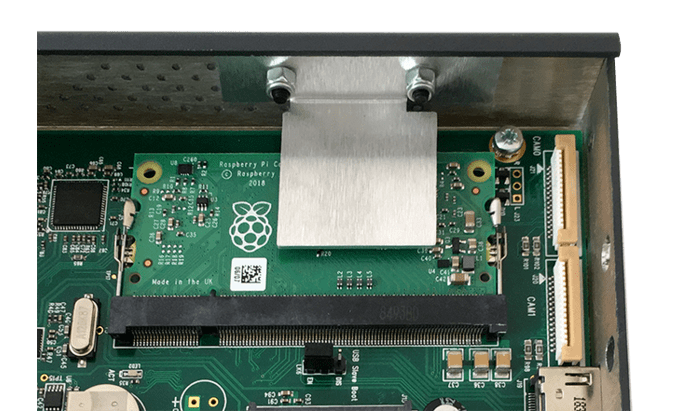

Side ventilation holes allow fan-less convection cooling. With the CPU heatsink bracket supplied, this the best enclosure for operation in ambient temperatures above 50°C.

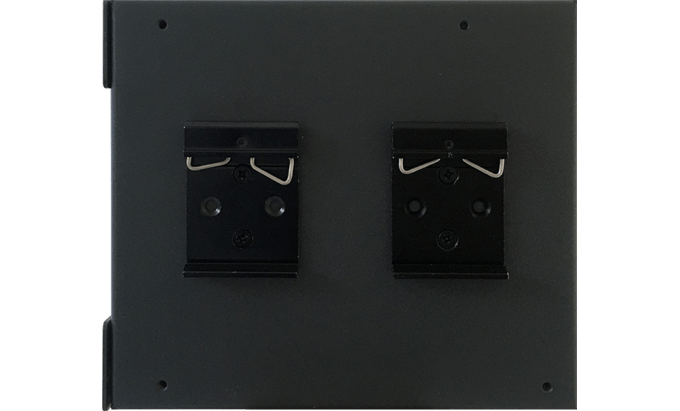

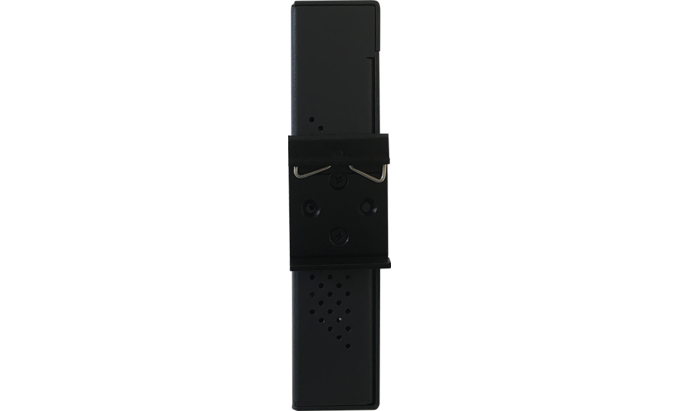

DIN Rail fixing points on the side and rear give maximum flexibility for cabinet installation where space is at a premium.

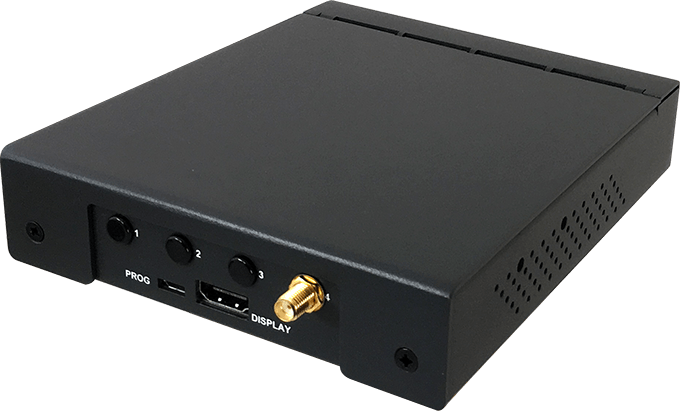

With 4 antenna ports the rear panel also provides interfaces for programming the Compute Module's integrated flash, which can be disabled if required, as well as a monitor display output.

Get Pricing

ENC-2

The Integrator board has been purpose designed to also fit into the 1455 range of extruded aluminium enclosures from Hammond. These are available world-wide from a network of distributors with a long lifespan.

Extruded style cases typically only require customised end plates to be either purchased from us, or fabricated and punched to match the circuit board installed, which reduces the design and manufacturing costs involved significantly when creating a product enclosure design for your project.

This is a good fit for installations which require a more dust tight enclosure.

All the single function IO cards we have designed have been built with the lowest profile enclosure type (1455P1602) in mind allowing for a neat solution.

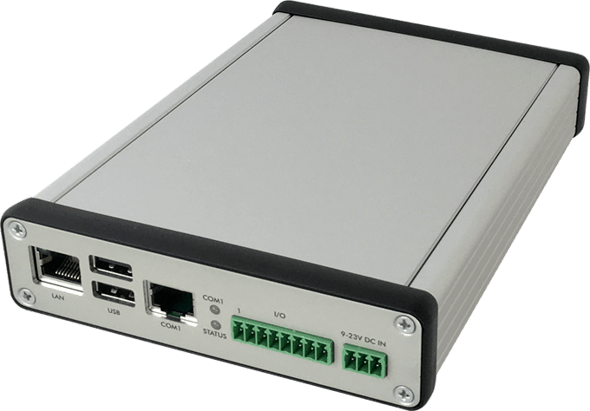

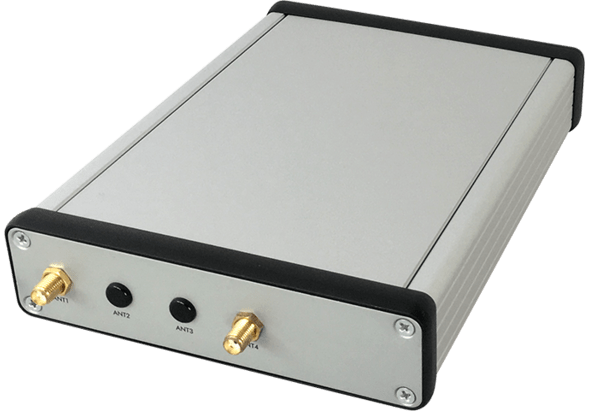

This model shows the desktop variant, which has no wall or DIN mount options, you can purchase the whole enclosure; just the end plates or download the CAD files and manufacture your own

Get Pricing

ENC-3

The Integrator board has been purpose designed to also fit into the 1455 range of extruded aluminium enclosures from Hammond. These are available world-wide from a network of distributors with a long lifespan.

Extruded style cases typically only require customised end plates to be either purchased from us, or fabricated and punched to match the circuit board installed, which reduces the design and manufacturing costs involved significantly when creating a product enclosure design for your project.

This is a good fit for installations which require a more dust tight enclosure.

All the single function IO cards we have designed have been built with the lowest profile enclosure type (1455P1602) in mind allowing for a neat solution.

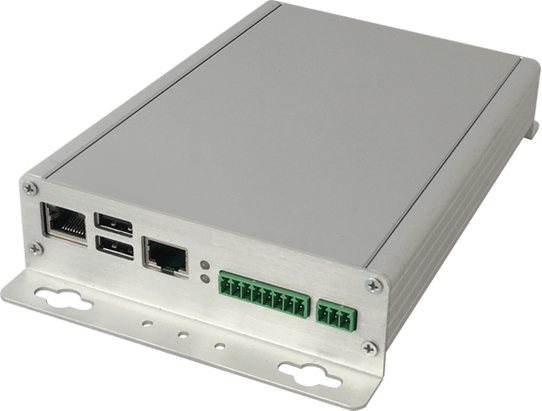

This model shows the low profile wall mount variant, you can purchase the whole enclosure; just the end plates or download the CAD files and manufacture your own.

Get Pricing

ENC-4

The Integrator board has been purpose designed to also fit into the 1455 range of extruded aluminium enclosures from Hammond. These are available world-wide from a network of distributors with a long lifespan.

Extruded style cases typically only require customised end plates to be either purchased from us, or fabricated and punched to match the circuit board installed, which reduces the design and manufacturing costs involved significantly when creating a product enclosure design for your project.

This is a good fit for installations which require a more dust tight enclosure.

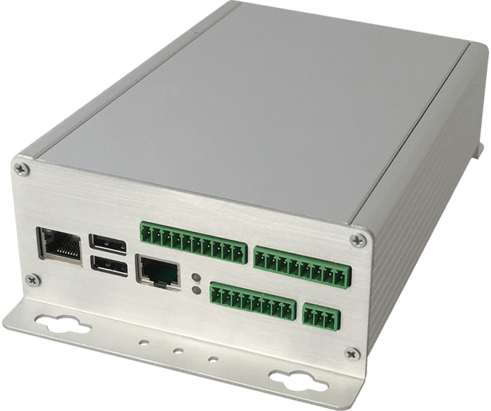

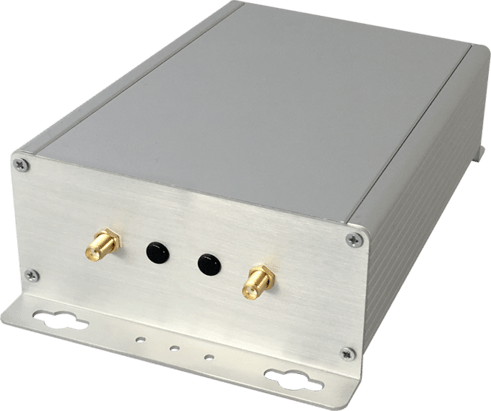

The double height extended form factor (1455Q1602) provides enough room to accommodate larger IO modules, the model shown has end plates suitable for the ISO-COMBO IO card.

This variant also comes with wall mountable end plates, you can purchase the whole enclosure; just the end plates or download the CAD files and manufacture your own.

Get Pricing
