MyPi Industrial IoT Integrator Board

Looking for a Raspberry Pi board designed specifically for Industrial IoT applications?

Our IoT integrator board makes use of the Pi 3+ CPU module from Raspberry Pi providing high processing power and innovative feature set for tackling diverse Industrial IoT projects.

Integrated mini card slot for use with a 4G cellular modems, WiFi, LoRa or Zigbee Adapters allowing easy RF expansion capability.

The key feature of our design being the unique modular IO interface allowing a range of off the shelf IO cards for common industrial protocols such as CAN, Modbus RS485 or Analogue 4-20mA inputs. Our custom IO card design services make solving IoT connectivity changes easy.

Leverage Raspberry Pi's wide software support and simple integration to cloud IoT services including Microsoft Azure and Amazon Web Services.

Order Now Price From £99

Powerful, flexible, feature rich Raspberry Pi for Industrial IoT applications

  •   Raspberry Pi Compute Module 1/3/3+ compatible
  •   Integrated 10/100 Ethernet adapter
  •   2x USB 2.0 master interfaces
  •   Mini PCI-e Interface + SIM connector For use with 4G cellular modems
  •   USB interfaced µSD Card interface, providing additional storage separate from the Compute Module eMMC flash
  •   Integrated USB RS232 UART (RX/TX/RTS/CTS) using RJ45 connector for maximum range.
  •   Modular IO Cards for application specific IO solutions
  •   Dual high-resolution Raspberry Pi camera interfaces
  •   Raspberry Pi HAT compatible I/O connector & mounting points
  •   Integrated battery backed real-time-clock (RTC)
  •   Additional 1.6s hardware watchdog for added system resilience
  •   HDMI display output
  •   2 x Bi-colour (red/green) front panel status LEDs
  •   8Way 2-part 3.5mm Screw terminal connector for use with modular IO card outputs or HAT board
  •   Wide 7-24V DC power input range
  •   Available in standard (0 to 70oC) and extended range (-25 to 80oC) temperature versions for demanding environments
  •   Core PCB Size : 120 x 142mm
MyPi Industrial Raspberry Pi IoT Compute Module Carrier Board Datasheet PDF
Download the datasheet
MyPi Industrial Raspberry Pi IoT Integrator Compute Module Carrier Board User Manual PDF
Download the user manual

Industrial IoT Ready

The MyPi Integrator board provides a flexible Raspberry Pi Compute Module 3+ based carrier board with design elements targeted specifically at industrial IoT system integrators, built with maximum IO flexibility in mind giving the capability to easily tackle diverse industrial IoT project requirements.

The modular RF Card slot allows mix and match between 4G cellular modem, Zigbee, LoRa, Bluetooth or enOcean mini RF cards allowing for quick expansion.

Integrated Ethernet interface and a flexible modular industrial IO slot for easy connection to common industrial sensors and control equipment.

MicroSD Card slot for secondary data storage, ideal for applications that require additional local data-logging storage space.

Dual HD Cameras for vison processing applications and integrated RS232 serial port for quick direct serial connections.

Raspberry Pi Industrial IoT Compute Module Carrier Board

Easy Modular Application IO

Adding project specific industrial IO couldn't be easier, use one of our off-the-shelf IO cards or work with us to create a custom IO card to match your Industrial IoT projects exact requirements.

Rather than using the standard plug in HAT card approach with IO signal connectors poking out on all sides, creating a packaging nightmare, our carrier board design allows IO cards to cleanly route all IO signals to a dedicated front facing screw terminal connector.

Because the functionality of the on-board IO connector is uncommitted, with a change of IO card we also change the functionality of this edge connector resulting in a very flexible solution for diverse Industrial IoT project challenges.

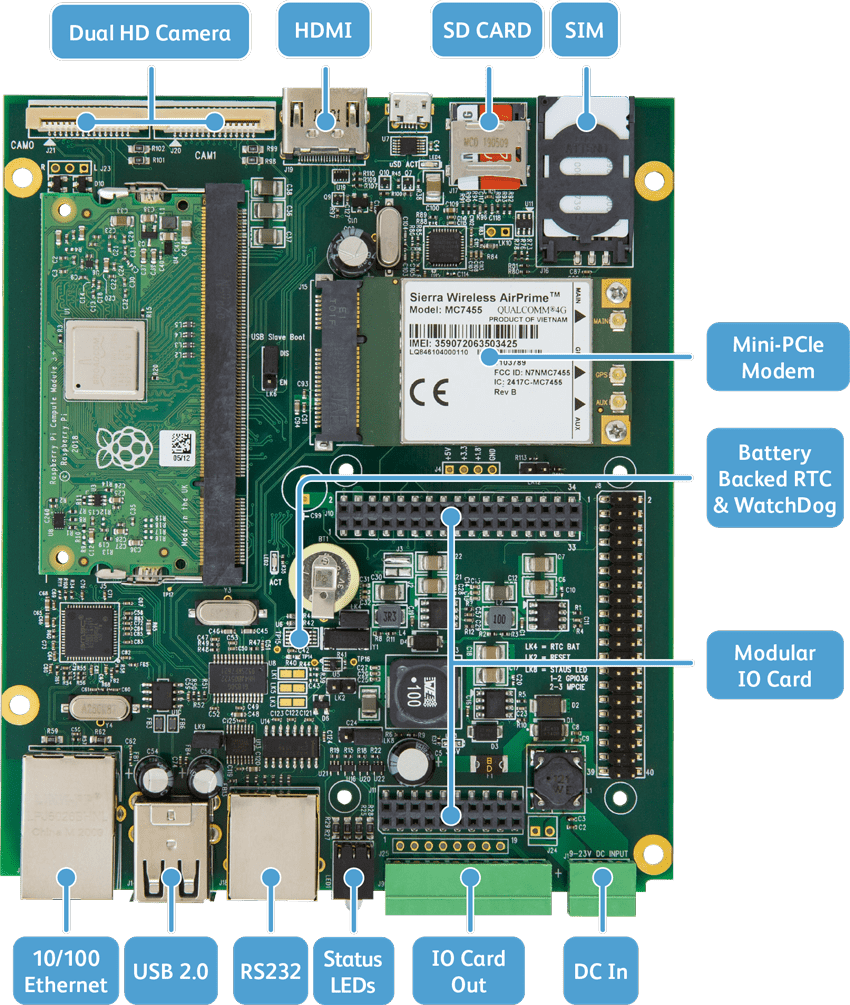

Raspberry Pi Industrial IoT Compute Module Board Features

Enclosures

The MyPi Industrial IoT Integrator Board has been designed to fit within several off-the-shelf enclosure types, from cost effective Hammond extruded aluminium types to IP66 Rated weatherproof enclosures from RF Elements.

We have also designed a custom DIN rail mountable enclosure with sleek looks, providing easy assembly and fast time to market.

Contact us today for any custom requirements or reference CAD drawings.

Learn More
Raspberry Pi Industrial IoT Compute Module Carrier Board Enclosures

Frequently Asked Questions

Is the MyPi IoT Board Compute Module 3/3+ Compatible?

Yes, the MyPi IoT Integrator Board can use Compute Modules 1 & 3/3+.

Where can I find pricing for the MyPi IoT Board?

Please use the quote request form here to build an RFQ for the parts you need.

Is there any lifespan guarantee for the Compute Module?

Raspberry Pi guarantee availability of Compute Modules 3/3+ until at least January 2028, click here for details.

Do you have an industrial temperature range version?

Yes, we can also provide an extended temperature range version for -25oC to 80oC industrial environments.

Where is the OS stored on the Compute Module?

The Compute Module has an integrated 4/8/16 or 32 Gbyte eMMC flash chip for storing the OS, you can use the on board SD card interface for addition datalogging storage.

How do I connect my industrial devices?

We provide sample code and documentation to help you configure the MyPi board, IO cards, Modems and a range of other devices here here.
