MyPi Industrial IoT Integrator Board SE

Searching for an industrial-grade Raspberry Pi solution engineered specifically for Industrial IoT deployments?

Our Special Edition industrial integrator board harnesses the Raspberry Pi 4 CPU module providing a cost effective, targeted IO for Industrial IoT projects.

Featuring built-in 4G cellular Capibility, dedicated RF expansion slots for XBEE/LoRa/Zigbee, flexible modular IO interface supporting CAN, Modbus RS485, and 4-20mA analog inputs

Integrated TPM 2.0 security, extended temperature operation (-40°C to +80°C) this board bridges the gap between consumer computing and industrial requirements.

Leverage Raspberry Pi's wide software support and simple integration to cloud IoT services including Microsoft Azure and Amazon Web Services.

Order Now

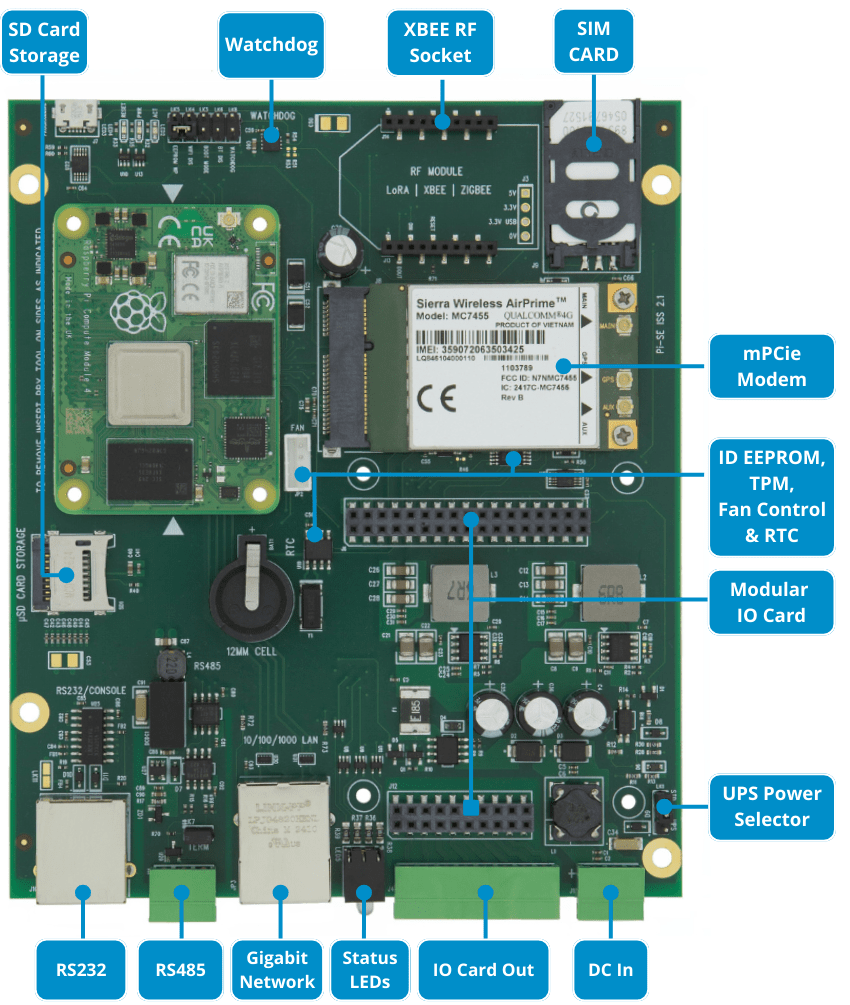

Industrial Raspberry Pi IoT Compute Module 4 Carrier Board

Powerful, flexible, feature rich Raspberry Pi for Industrial IoT applications

Supports All Raspberry Pi Compute Module 4 variants
1x Gigabit Ethernet adapter
1x RS232 Serial Port
1x Isolated RS485 Serial Port
Mini PCI-e Interface + SIM connector For use with 4G cellular modems
DIGI XBEE Compatible RF Slot for XBEE/LoRa/Zigbee RF modules
µSD Card interface, providing additional storage separate from the Compute Module eMMC flash
Integrated SPI Infineon SLB9670 TPM 2.0
Integrated battery backed real-time-clock (RTC)
Board Serial Number ID EEPROM
Modular IO Cards with 11 GPIO Pins – Compatible with ADC/CAN/485/Sensor-Kit IO boards
Temperature activated fan control (same as Pi CMIO4 board)
Additional 60 Second hardware watchdog (active from power up/boot)
2x Bi-colour (red/green) front panel status LEDs
1x Opto-Isolated Digital Input
8Way 2-part 3.5mm Screw terminal connector for use with modular IO card outputs
Wide 9-28V DC power input range
Wide operating temperature range, -20^oC to +80^oC with standard CM4 and -40^oC to +80^oC with extended temp models
Core PCB Size : 120 x 142mm

MyPi Industrial Raspberry Pi IoT Compute Module 4 Carrier Board SE Datasheet PDF

Raspberry Pi for Industrial IoT

The Special Edition integrator board is a Raspberry Pi Compute Module 4 based carrier board with integrated IO specifically for common industrial IoT applications.

The SE board offers dual RF connectivity: an mPCIe slot with SIM for 4G modems and a XBEE-compatible slot for LoRa/Zigbee protocol

Integrated RS232 and RS485 interfaces combined with a modular IO slot supporting multiple IO cards provide connection to industrial sensors and control equipment

MicroSD Card slot provides secondary data storage, ideal for applications requiring robust local data-logging capabilities separate from the Compute Module's eMMC flash

On-board TPM 2.0 security device has full OS software support for secure boot, encrypted filesystems. The extended operating temperature range of -40^oC to +80^oC ensures reliable performance in harsh industrial environments.

Buy Now

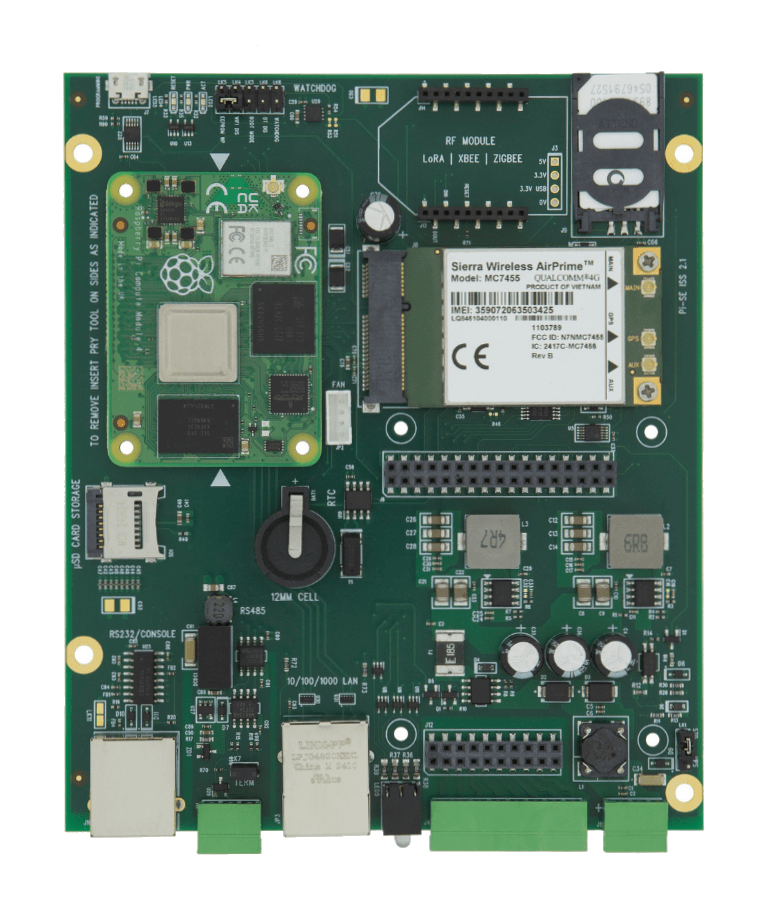

Raspberry Pi Industrial IoT Compute Module 4 Carrier SE Board

Easy Modular Application IO

Adding project specific industrial IO couldn't be easier using one of our off-the-shelf IO cards. Alternatively work with us to create a custom IO card to match your Industrial IoT project's exact requirements.

Rather than using the standard plug in HAT card approach with IO signal connectors poking out on all sides, creating a packaging nightmare. Our carrier board design allows IO cards to cleanly route IO signals to a dedicated front facing screw terminal connector.

As the functionality of the on-board IO connector is uncommitted, with a change of IO card the functionality of the edge connector changes. This results in a very flexible solution for diverse Industrial IoT project challeng

Buy Now

Raspberry Pi Industrial IoT Compute Module 4 modular IO Cards

Ready Made Enclosures

The MyPi Industrial IoT Integrator Board has been designed to fit within several off-the-shelf enclosure types, from cost effective Hammond extruded aluminium types to IP66 Rated weatherproof designs by RF Elements.

We have also designed a custom DIN rail mountable enclosure with sleek looks, providing easy assembly and fast time to market.

Contact us today for any custom requirements or reference CAD drawings.

See Our Enclosure Range

Raspberry Pi Industrial IoT Compute Module Carrier Board Enclosures

Frequently Asked Questions

Is the MyPi IoT Carrier Board Compute Module 4 Compatible?

Yes, the MyPi IoT Integrator Board SE can use any Raspberry Pi Compute Module 4 version.

I need a custom mix of IO - Can you help with this?

Yes, we can combine multiple IO cards or create a custom IO card based around your specification, or migrate an existing IO card, click here to submit your request to our technical sales team.

Where is the OS stored on the Compute Module?

The Raspberry Pi Compute Module has an integrated 8,16 or 32 Gbyte eMMC flash chip for storing the OS, you can use the on board micro SD card interface for addition datalogging storage.

What is the operational temperature range?

The board is rated for -40^oC to 80^oC environments, for temperatures over 70^oC active cooling using the onboard fan controller may be needed if high clock speed is required.

Is there any lifespan guarantee for the Compute Module?

Raspberry Pi guarantee availability of Compute Modules 4 until at least January 2034, click here for details.

Where can I find pricing for the MyPi IoT Integrator Board?

Please use the quote request form here to build an RFQ for the parts you need.
